LM1085-05-220M LOW DROPOUT 3 AMP POSITIVE VOLTAGE REGULATOR

The LM1085 is designed to provide 3A with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1V input to output differential and the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at a maximum of 1.5V at .

LM1085 220M 05 LM1085 05 220M LM1085 12 220M MILITARY VERSION TO 220 Isolated Metal Package 10.41 10.67 4.70 5.00 0.70 0.90 3.56 3.81 Dia. 123 16.38 16.89 13 .3 9 13 .6 4 10.41 10.92 12.70 19.05 0.89 1.14 2.54 2.65 BSC 2.75 Pinouts Pin Fixed Adjustable 1 GROUND ADJUST 2 OUTPUT OUTPUT 3 INPUT INPUT Case is ISOLATED Ordering Information LM1085 220M Positive Adjustable Regulator LM1085 05 220M Fi.

LM1085-05-220M Features

* Low Dropout Performance

* Fixed or Adjustable Voltages

* Fixed Output Voltages of 5V & 12V

* Output Current 3A

* Line Regulation 0.015% / V Typical.

* Load Regulation 0.1% Typical.

* Military Temperature Range (

* 55 to +150°C) BLOCK DI

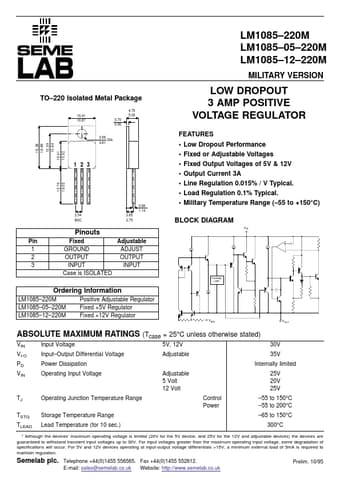

LM1085-220M-Semelab.pdf
