LM1086 1.5A Low Dropout Positive Regulators

The LM1086 is a series of low dropout positive voltage regulators with a maximum dropout of 1.5V at 1.5A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1086 is available in an adjustable version, which can set the output voltage with only two exte.

LM1086 Features

* n n n n n Available in 2.85V, 3.3V, 5V and Adjustable Versions Current Limiting and Thermal Protection Output Current 1.5A Line Regulation 0.015% (typical) Load Regulation 0.1% (typical) Applications n n n n n n SCSI-2 Active Terminator High Efficiency Linear Regulators Battery Charger Post Regulat

LM1-086.pdf

This datasheet PDF includes multiple part numbers: LM1086, LM1. Please refer to the document for exact specifications by model.

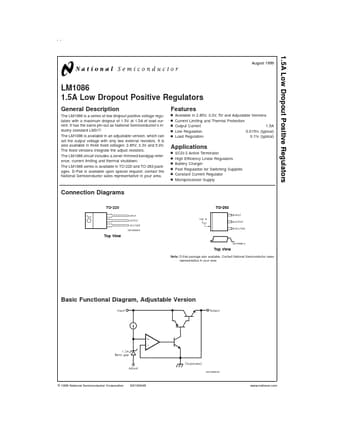

LM1086 Datasheet Preview Page 2 LM1086 Datasheet Preview Page 3

Datasheet Details

Part number:

LM1086, LM1

Manufacturer:

National Semiconductor

File Size:

345.60 KB

Description:

1.5a low dropout positive regulators.

Note:

This datasheet PDF includes multiple part numbers: LM1086, LM1.
Please refer to the document for exact specifications by model.
