LM1117GS - 1A L.D.O VOLTAGE REGULATOR

LM1117GS Description

1A L.D.O VOLTAGE REGULATOR .
The LM1117GS is a low power positive-voltage regulator designed to meet 1A output current.

LM1117GS Features

* Output Current up to 1A
* Dropout Voltage is 1.2V at Output current
* Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V
* Line Regulation typically at 0.1% typ.
* Load Regulation typically at 0.2% typ.
* Internal Current and Thermal Protection

LM1117GS Applications

* Active SCSI Terminators
* Portable/ Plan Top/ Notebook Computers
* High Efficiency Linear Regulators
* SMPS Post Regulators
* Mother B/D Clock Supplies
* Disk Drives
* Battery Chargers ORDERING INFORMATION Device LM1117GS-ADJ LM1117GS-x. x Package SOT-223-3L x. x: Out

📥 Download Datasheet

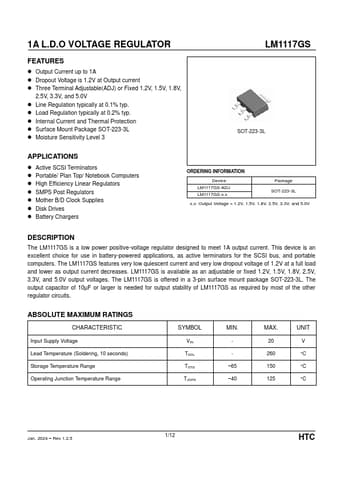

Preview of LM1117GS PDF
