LM1117S Datasheet, REGULATOR, HTC

LM1117S Features

• Regulator
• Output Current up to 1.0A
• Low Dropout Voltage (1.2V at 1.0A Output current)
• Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V

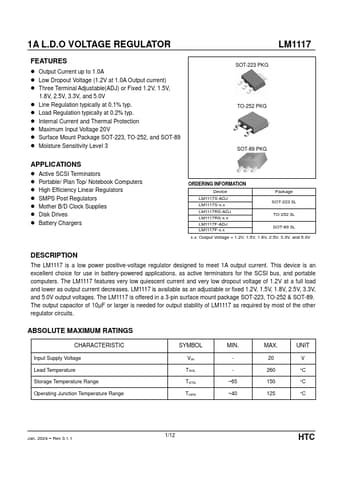

PDF File Details

Part number:

LM1117S

Manufacturer:

HTC

File Size:

611.06kb

Download:

📄 Datasheet

Description:

1a l.d.o. voltage regulator. The LM1117 is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use i

LM1117S Application

• Applications
• Active SCSI Terminators
• Portable/ Plan Top/ Notebook Computers
• High Efficiency Linear Regulators
