LM1117RS Datasheet, Regulator, HTC

LM1117RS Features

• Regulator
• Output Current up to 1.0A
• Low Dropout Voltage (1.2V at 1.0A Output current)
• Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V

PDF File Details

Part number:

LM1117RS

Manufacturer:

HTC

File Size:

611.06kb

Download:

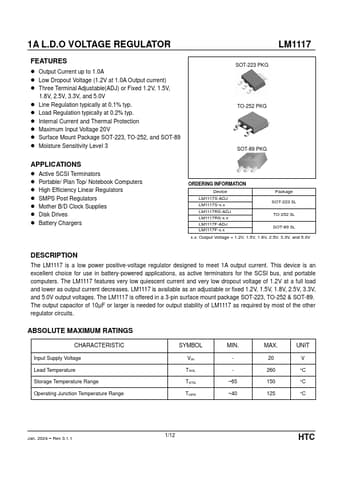

📄 Datasheet

Description:

1a l.d.o. voltage regulator. The LM1117 is a low power positive-voltage regulator designed to meet 1A output current. This device is an excellent choice for use i

LM1117RS Application

• Applications
• Active SCSI Terminators
• Portable/ Plan Top/ Notebook Computers
• High Efficiency Linear Regulators
