LM1117 - 1A L.D.O VOLTAGE REGULATOR

LM1117 Description

1A L.D.O VOLTAGE REGULATOR LM1117 .

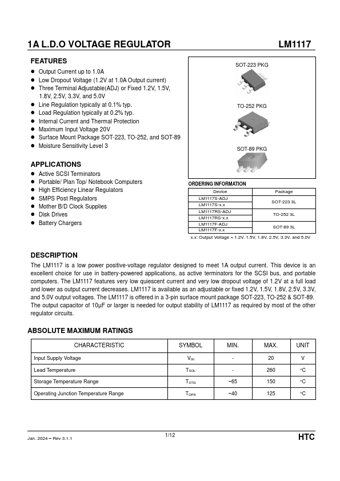

The LM1117 is a low power positive-voltage regulator designed to meet 1A output current.

LM1117 Features

* Output Current up to 1.0A
* Low Dropout Voltage (1.2V at 1.0A Output current)
* Three Terminal Adjustable(ADJ) or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V
* Line Regulation typically at 0.1% typ.
* Load Regulation typically at 0.2% typ.
* Internal Current and Thermal Pr

LM1117 Applications

* Active SCSI Terminators
* Portable/ Plan Top/ Notebook Computers
* High Efficiency Linear Regulators
* SMPS Post Regulators
* Mother B/D Clock Supplies
* Disk Drives
* Battery Chargers ORDERING INFORMATION Device Package LM1117S-ADJ LM1117S-x. x SOT-223 3L LM1117RS
