LM39302, LM39300 3A Low-Voltage Low-Dropout Regulator

LM39302 Description

3A Low-Voltage Low-Dropout Regulator LM39300/39301/39302 .
The LM39300, LM39301 and LM39302 are 3.

LM39302 Features

* Guaranteed Output Current of 3.0A
* Fixed Output Voltage: 1.5V, 1.8V, 2.5V, 3.3V and 5.0V
* 1% initial accuracy
* Low ground current
* Over-Temperature/Over-Current Protection
* Fast transient response
* TTL/CMOS compatible enable pin  LM39301
* Error flag output -

LM39302 Applications

* The device requires only 47uF of output capacitance to maintain stability and achieve fast transient response. The LM39300/1 is fully protected with over current limiting, thermal shutdown, reversedbattery protection, reversed-leakage protection, and reversed-lead insertion. The LM39301 offers a TT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM39302, LM39300. Please refer to the document for exact specifications by model.

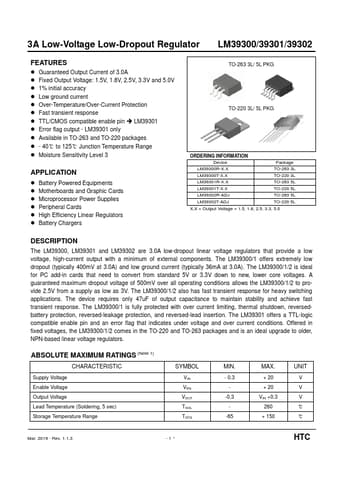

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM39302, LM39300
Manufacturer
HTC
File Size
433.91 KB
Datasheet
LM39300_HTC.pdf
Description
3A Low-Voltage Low-Dropout Regulator
Note
This datasheet PDF includes multiple part numbers: LM39302, LM39300.
Please refer to the document for exact specifications by model.
