LM39300 - 3A Low-Voltage Low-Dropout Regulator

Product Overview

HTC

LM39300 3A Low-Voltage Low-Dropout Regulator by HTC - Datasheet Preview — Datasheet preview – LM39300

Datasheet Details

Part number	LM39300
Manufacturer	HTC
File Size	433.91 KB
Description	3A Low-Voltage Low-Dropout Regulator
Datasheet	LM39300 Datasheet

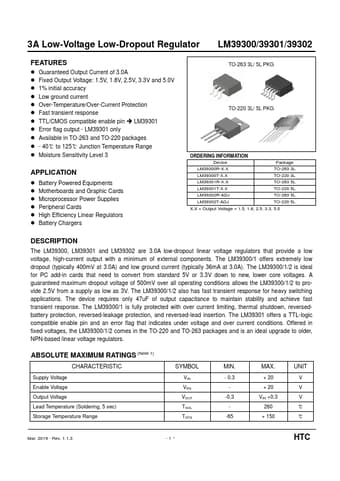

Additional preview pages of the LM39300 datasheet.

Product details

Description

The LM39300, LM39301 and LM39302 are 3.0A low-dropout linear voltage regulators that provide a low voltage, high-current output with a minimum of external components.

Features

Guaranteed Output Current of 3.0A.
Fixed Output Voltage: 1.5V, 1.8V, 2.5V, 3.3V and 5.0V.
1% initial accuracy.
Low ground current.
Over-Temperature/Over-Current Protection.
Fast transient response.
TTL/CMOS compatible enable pin  LM39301.
Error flag output - LM39301 only.
Available in TO-263 and TO-220 packages.
- 40℃ to 125℃ Junction Temperature Range.
Moisture Sensitivity Level 3.
