LM393AP - Dual Differential Comparators

Product Overview

Texas Instruments

📥 Download Datasheet

LM393AP Dual Differential Comparators by Texas Instruments - Datasheet Preview — Datasheet preview – LM393AP

Datasheet Details

Part number	LM393AP
Manufacturer	Texas Instruments
File Size	3.07 MB
Description	Dual Differential Comparators
Datasheet	LM393AP Datasheet
Note	This datasheet PDF includes multiple part numbers: LM393AP, LM393. Please refer to the document for exact specifications by model.

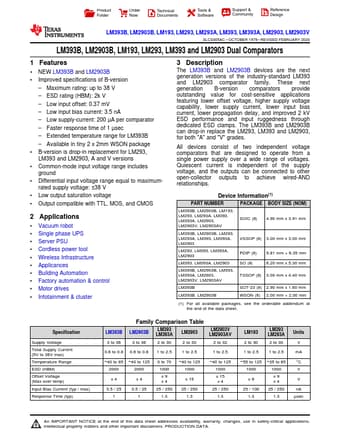

Additional preview pages of the LM393AP datasheet.

Product details

Description

The LM393B and LM2903B devices are the next generation versions of the industry-standard LM393 and LM2903 comparator family.

Features

1 NEW LM393B and LM2903B.
Improved specifications of B-version.
Maximum rating: up to 38 V.
ESD rating (HBM): 2k V.
Low input offset: 0.37 mV.
Low input bias current: 3.5 nA.
Low supply-current: 200 µA per comparator.
Faster response time of 1 µsec.
Extended temperature range for LM393B.
Available in tiny 2 x 2mm WSON package.
B-version is drop-in replacement for LM293, LM393 and LM2903, A and V ve.
