LM393AMX - Dual Differential Comparator

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	LM393AMX
Manufacturer	Fairchild Semiconductor
File Size	138.45 KB
Description	Dual Differential Comparator
Datasheet	LM393AMX Datasheet
Note	This datasheet PDF includes multiple part numbers: LM393AMX, LM393. Please refer to the document for exact specifications by model.

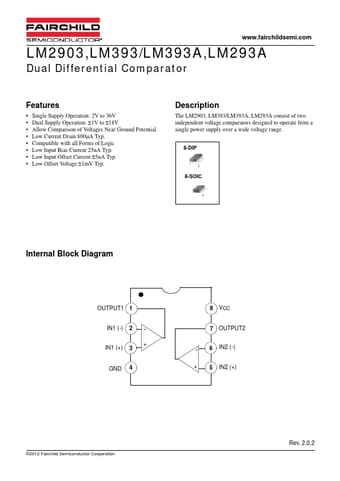

Additional preview pages of the LM393AMX datasheet.

Product details

Description

The LM2903, LM393/LM393A, LM293A consist of two independent voltage comparators designed to operate from a single power supply over a wide voltage range.

Features

Single Supply Operation: 2V to 36V.
Dual Supply Operation: 1V to 18V.
Allow Comparison of Voltages Near Ground Potential.
Low Current Drain 800A Typ.
Compatible with all Forms of Logic.
Low Input Bias Current 25nA Typ.
Low Input Offset Current 5nA Typ.
Low Offset Voltage 1mV Typ.
