LM79L24 - 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR

This page provides the datasheet information for the LM79L24, a member of the LM79L05 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR family.

Datasheet Summary

Description

This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications.

These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation.

Features

  • Output Current Up to 100mA.
  • No External Components.
  • Internal Thermal Overload Protection.
  • Internal Short-Circuit Limiting.
  • Output Voltage of -5V, -6V, -8V, -9V, -12V, -15V, -18V, and -24V.
  • Moisture Sensitivity Level 3 TO-92 PKG (Straight) (Bent).

📥 Download Datasheet

Datasheet preview – LM79L24

Datasheet Details

Part number LM79L24
Manufacturer HTC
File Size 485.29 KB
Description 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR
Datasheet download datasheet LM79L24 Datasheet
Additional preview pages of the LM79L24 datasheet.

📁 Similar Datasheet

  • LM79L24 - 100mA Negative Voltage Regulator (Bay Lineer)
  • LM79L24M3 - Low Current Negative Voltage Regulator (CYStech Electronics)
  • LM79L05 - Three-Terminal Negative Voltage Regulator (Kexin)
  • LM79L05 - 100mA Negative Voltage Regulator (Bay Lineer)
  • LM79L05 - NEGATIVE VOLTAGE REGULATOR (CDIL)
  • LM79L05 - 3-Terminal Negative Regulators (Texas Instruments)
  • LM79L05A3 - Three Terminal Low Current Negative Voltage Regulators (CYStech)
  • LM79L05AC - 3-Terminal Negative Regulators (National Semiconductor)
  • LM79L05ACM - 3-Terminal Negative Regulators (National Semiconductor)
  • LM79L05M3 - Low Current Negative Voltage Regulator (CYStech Electronics)
Other Datasheets by HTC
  • LM79L05 - 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR
  • LM79L06 - 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR
  • LM79L08 - 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR
  • LM79L09 - 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR
  • LM79L12 - 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR
  • LM79L15 - 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR
  • LM79L18 - 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR
  • LM7905TP - 3-Terminal 1.5A Negative Voltage Regulator

Full PDF Text Transcription

Click to expand full text

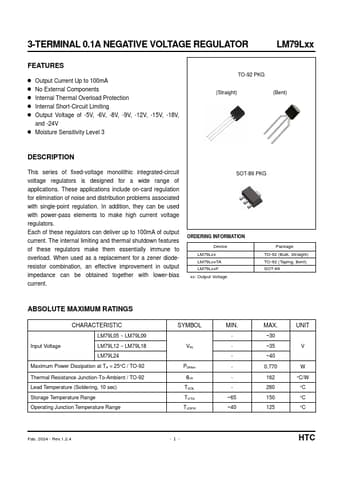

3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR LM79Lxx FEATURES ⚫ Output Current Up to 100mA ⚫ No External Components ⚫ Internal Thermal Overload Protection ⚫ Internal Short-Circuit Limiting ⚫ Output Voltage of -5V, -6V, -8V, -9V, -12V, -15V, -18V, and -24V ⚫ Moisture Sensitivity Level 3 TO-92 PKG (Straight) (Bent) DESCRIPTION This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high current voltage regulators. Each of these regulators can deliver up to 100mA of output current.
