MC34063A Datasheet DC-DC Converter Controller

Manufacturer: HTC KOREA

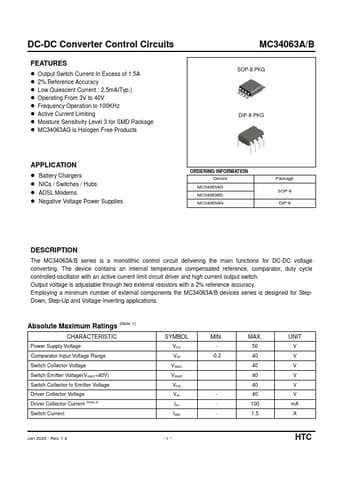

MC34063A dc-dc converter controller by HTC KOREA - Datasheet Preview

Datasheet Details

Part number	MC34063A
Manufacturer	HTC KOREA
File Size	501.23 KB
Description	DC-DC Converter Controller
Download	MC34063A Download (PDF)

General Description

The MC34063A/B series is a monolithic control circuit delivering the main functions for DC-DC voltage converting.

The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit driver and high current output switch.

Output voltage is adjustable through two external resistors with a 2% reference accuracy.

Overview

DC-DC Converter Control Circuits.

Key Features

Output Switch Current In Excess of 1.5A.
2% Reference Accuracy.
Low Quiescent Current : 2.5mA(Typ. ).
Operating From 3V to 40V.
Frequency Operation to 100KHz.
Active Current Limiting.
Moisture Sensitivity Level 3 for SMD Package.
MC34063AG is Halogen Free Products MC34063A/B SOP-8 PKG DIP-8 PKG.
