MC34063AG - DC-DC Converter Controller

Datasheet Summary

Description

The MC34063AG series is a monolithic control circuit delivering the main functions for DC-DC voltage converting.

The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit driver and high current output switch.

Features

  • Output Switch Current In Excess of 1.5A.
  • 2% Reference Accuracy.
  • Low Quiescent Current : 2.5mA(Typ. ).
  • Operating From 3V to 40V.
  • Frequency Operation to 100KHz.
  • Active Current Limiting.
  • MC34063AG is Halogen Free Products MC34063AG SOP-8.

📥 Download Datasheet

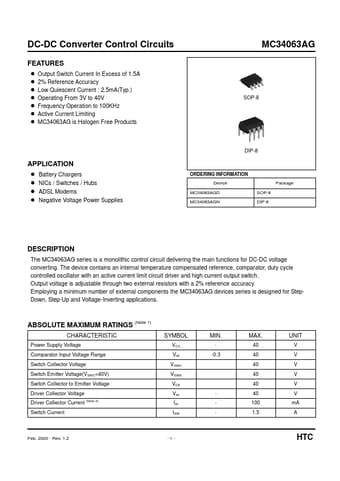

Datasheet preview – MC34063AG

Datasheet Details

Part number MC34063AG
Manufacturer HTC
File Size 527.07 KB
Description DC-DC Converter Controller
Datasheet download datasheet MC34063AG Datasheet
Additional preview pages of the MC34063AG datasheet.

📁 Similar Datasheet

  • MC34063A - DC-to-DC Converter Controller (Motorola)
  • MC34063A - Inverting Regulator (ON Semiconductor)
  • MC34063A - DC/DC CONVERTER CONTROLLER (AIC)
  • MC34063A - SMPS Controller (Fairchild)
  • MC34063A - DC-DC CONVERTER CONTROL CIRCUITS (STMicroelectronics)
  • MC34063A - DC TO DC CONVERTER CONTROLLER (UTC)
  • MC34063A - 1.5-A Peak Boost/Buck/Inverting Switching Regulators (Texas Instruments)
  • MC34063AB - DC-DC converter controller (STMicroelectronics)
  • MC34063AC - DC-DC converter controller (STMicroelectronics)
  • MC34063AQ8 - DC-to-DC Converter Controller (Cystech Electonics)
Other Datasheets by HTC
  • MC34063A - DC-DC Converter Controller
  • MC34063AD - DC-DC Converter Controller
  • MC34063AN - DC-DC Converter Controller
  • MC34063B - DC-DC Converter Controller
  • MC34063BD - DC-DC Converter Controller
  • MC34063C - Step Down / Step Up / Inverting DC-DC Converter
  • MC34063CD - Step Down / Step Up / Inverting DC-DC Converter
  • MC34063CN - Step Down / Step Up / Inverting DC-DC Converter

Full PDF Text Transcription

Click to expand full text
DC-DC Converter Control Circuits FEATURES  Output Switch Current In Excess of 1.5A  2% Reference Accuracy  Low Quiescent Current : 2.5mA(Typ.)  Operating From 3V to 40V  Frequency Operation to 100KHz  Active Current Limiting  MC34063AG is Halogen Free Products MC34063AG SOP-8 APPLICATION  Battery Chargers  NICs / Switches / Hubs  ADSL Modems  Negative Voltage Power Supplies DIP-8 ORDERING INFORMATION Device MC34063AGD MC34063AGN Package SOP-8 DIP-8 DESCRIPTION The MC34063AG series is a monolithic control circuit delivering the main functions for DC-DC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit driver and high current output switch.
