HT2271 - Rail-to-Rail I/O CMOS Op Amps

Product Overview

HTCSEMI

Datasheet Details

Part number	HT2271
Manufacturer	HTCSEMI
File Size	528.59 KB
Description	Rail-to-Rail I/O CMOS Op Amps
Datasheet	HT2271 Datasheet

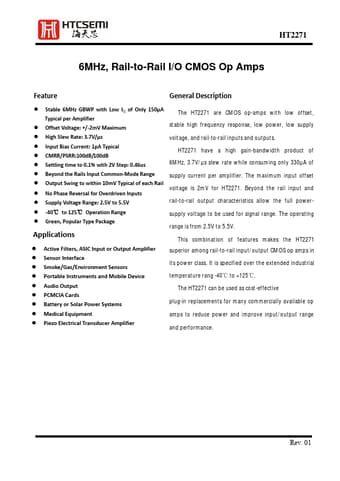

Additional preview pages of the HT2271 datasheet.

Product details

Description

Stable 6MHz GBWP with Low IQ of Only 150µA Typical per Amplifier Offset Voltage: +/-2mV Maximum High Slew Rate: 3.7V/µs Input Bias Current: 1pA Typical CMRR/PSRR:100dB/100dB Settling time to 0.1% with 2V Step: 0.46us Beyond the Rails Input Common-Mode Range Output Swing to within 10mV Typical of each Rail No Phase Reversal for Overdriven Inputs Supply Voltage Range: 2.5V to 5.5V -40℃ to 125℃ Operation Range Green, Popular T

Features

makes the HT2271 superior among rail-to-rail input/output CMOS op amps in its power class. It is specified over the extended industrial temperature rang -40℃ to +125℃. The HT2271 can be used as cost-effective plug-in replacements for many commercially available op amps to reduce power and improve input/output range and performance. Rev. 01 Absolute Maximum Ratings (If out of these ratings, the filter may be fail or damaged) Table 1 Symbol VDD TA TSTG parameter Power supply Operating ambient.
