HT20071A - Operational Amplifier

Product Overview

HTCSEMI

📥 Download Datasheet

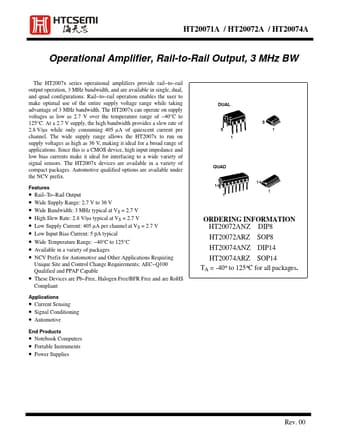

HT20071A Operational Amplifier by HTCSEMI - Datasheet Preview — Datasheet preview – HT20071A

Datasheet Details

Part number	HT20071A
Manufacturer	HTCSEMI
File Size	4.64 MB
Description	Operational Amplifier
Datasheet	HT20071A Datasheet
Additional preview pages of the HT20071A datasheet.

Product details

Features

Rail.
To.
Rail Output.
Wide Supply Range: 2.7 V to 36 V.
Wide Bandwidth: 3 MHz typical at VS = 2.7 V.
High Slew Rate: 2.8 V/ms typical at VS = 2.7 V.
Low Supply Current: 405 mA per channel at VS = 2.7 V.
Low Input Bias Current: 5 pA typical.
Wide Temperature Range:.
40°C to 125°C.
Available in a variety of packages.
NCV Prefix for Automotive and Other.
