HT2013M - (HT201xx) One Lamp/LED Flash Driver

This page provides the datasheet information for the HT2013M, a member of the HT201xx (HT201xx) One Lamp/LED Flash Driver family.

Datasheet Summary

Description

The HT201XX series is a low cost, low power CMOS LSI chip designed for lamp and LED flash drivers.

It can be operated without any external components, thus suitable for applications on flashing badges, gift cards, flashing earrings, and other products that require flashing lights.

Features

  • CMOS Metal-Gate Process Technology Operating voltage: 1.2V~4.5V Low standby current: 1µA Typ. at 3V Built-in oscillator (FOSC: 32KHz) ON/OFF control function for the HT2013H, HT2013M, HT2013L 1/8 duty cycle output Directly driving an LED Minimum external components TO-92 package (only for the HT2012H, HT2014M, HT2014L).
  • Flash rate options:.
  • HT2013H → about 4Hz.
  • HT2012H → about.

📥 Download Datasheet

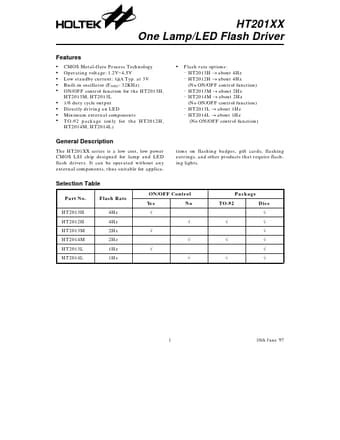

Datasheet preview – HT2013M

Datasheet Details

Part number HT2013M
Manufacturer Holtek Semiconductor
File Size 95.67 KB
Description (HT201xx) One Lamp/LED Flash Driver
Datasheet download datasheet HT2013M Datasheet
Additional preview pages of the HT2013M datasheet.

📁 Similar Datasheet

  • HT2015 - HART Modem (Smar Research)
  • HT201V01-100 - TFT LCD (BOE)
  • HT20071A - Operational Amplifier (HTCSEMI)
  • HT20072A - Operational Amplifier (HTCSEMI)
  • HT20074A - Operational Amplifier (HTCSEMI)
  • HT203C - High Performance Current Mode PWM Switching Power Supply (HOTCHIP)
  • HT2050 - Five LAMP/LED Flash Driver (Holtek)
  • HT2070A - Lotto FLASH Driver (Holtek Microelectronics)
  • HT2144 - STEREO 2.1W Non-Clip DIGITAL AUDIO POWER AMPLIFIER (ETC)
  • HT2145 - Class D Audio Power Amplifier (Heroic)
Other Datasheets by Holtek Semiconductor
  • HT2013H - (HT201xx) One Lamp/LED Flash Driver
  • HT2013L - (HT201xx) One Lamp/LED Flash Driver
  • HT2012H - (HT201xx) One Lamp/LED Flash Driver
  • HT2014L - (HT201xx) One Lamp/LED Flash Driver
  • HT2014M - (HT201xx) One Lamp/LED Flash Driver
  • HT201xx - (HT201xx) One Lamp/LED Flash Driver
  • HT2040A - Christmas Light Controller
  • HT2201 - CMOS 1K 2-Wire Serial EEPROM

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com HT201XX One Lamp/LED Flash Driver Features • • • • • • • • • CMOS Metal-Gate Process Technology Operating voltage: 1.2V~4.5V Low standby current: 1µA Typ. at 3V Built-in oscillator (FOSC: 32KHz) ON/OFF control function for the HT2013H, HT2013M, HT2013L 1/8 duty cycle output Directly driving an LED Minimum external components TO-92 package (only for the HT2012H, HT2014M, HT2014L) • Flash rate options: – HT2013H → about 4Hz – HT2012H → about 4Hz (No ON/OFF control function) – HT2013M → about 2Hz – HT2014M → about 2Hz (No ON/OFF control function) – HT2013L → about 1Hz – HT2014L → about 1Hz (No ON/OFF control function) General Description The HT201XX series is a low cost, low power CMOS LSI chip designed for lamp and LED flash drivers.
