HT2015, HART Modem

SmarResearch TechnologySource HART® Fieldbus Profibus Intrinsic Safety Configuration Tools Semiconductors Training Custom Design HART Modem HT2015 Da.
General Description The HT2015 is a single-chip, CMOS modem for use in Highway Addressable Remote Transducer (HART) field instruments and masters.

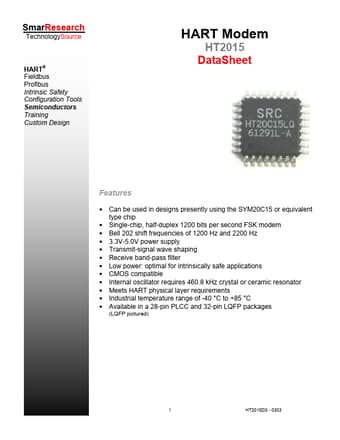

datasheet Preview Page 1 from Datasheet4u.com

HT2015-SmarResearch.pdf

HT2015 Datasheet Preview — Preview of HT2015 PDF

Datasheet Details

Part number:

HT2015

Manufacturer:

Smar Research

File Size:

311.49 KB

Description:

HART Modem

Features

* Can be used in designs presently using the SYM20C15 or equivalent type chip
* Single-chip, half-duplex 1200 bits per second FSK modem
* Bell 202 shift frequencies of 1200 Hz and 2200 Hz
* 3.3V-5.0V power supply
* Transmit-signal wave shaping
* Receiv

Applications

* CMOS compatible
* Internal oscillator requires 460.8 kHz crystal or ceramic resonator
* Meets HART physical layer requirements
* Industrial temperature range of -40 °C to +85 °C
* Available in a 28-pin PLCC and 32-pin LQFP packages (LQFP pictured) ©Smar Res
