HT2013H - (HT201xx) One Lamp/LED Flash Driver

Product Overview

Holtek Semiconductor

📥 Download Datasheet

HT2013H (HT201xx) One Lamp/LED Flash Driver by Holtek Semiconductor - Datasheet Preview — Datasheet preview – HT2013H

Datasheet Details

Part number	HT2013H
Manufacturer	Holtek Semiconductor
File Size	95.67 KB
Description	(HT201xx) One Lamp/LED Flash Driver
Datasheet	HT2013H Datasheet
Note	This datasheet PDF includes multiple part numbers: HT2013H, HT201xx. Please refer to the document for exact specifications by model.

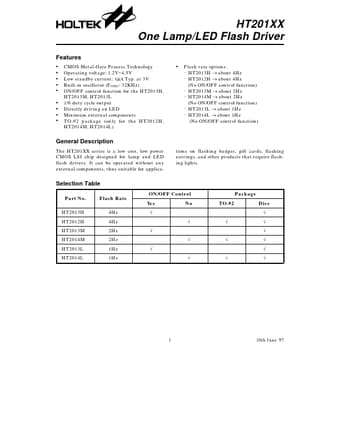

Additional preview pages of the HT2013H datasheet.

Product details

Description

The HT201XX series is a low cost, low power CMOS LSI chip designed for lamp and LED flash drivers.

Features

CMOS Metal-Gate Process Technology Operating voltage: 1.2V~4.5V Low standby current: 1µA Typ. at 3V Built-in oscillator (FOSC: 32KHz) ON/OFF control function for the HT2013H, HT2013M, HT2013L 1/8 duty cycle output Directly driving an LED Minimum external components TO-92 package (only for the HT2012H, HT2014M, HT2014L).
Flash rate options:.
HT2013H → about 4Hz.
HT2012H → about.
