HT7818, HT7805 - POSITIVE VOLTAGE REGULATOR

HTCSEMI

📥 Download Datasheet

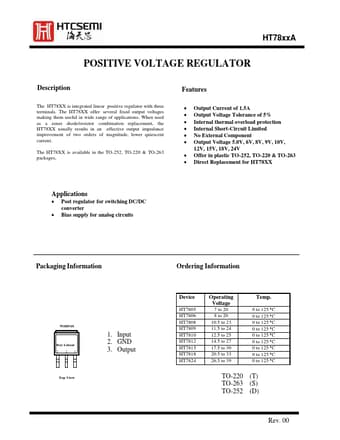

HT7818 Datasheet Preview — This datasheet PDF includes multiple part numbers: HT7818, HT7805. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HT7818, HT7805
Manufacturer: HTCSEMI
File Size: 273.30 KB
Datasheet: HT7805-HTCSEMI.pdf
Description: POSITIVE VOLTAGE REGULATOR
Note: This datasheet PDF includes multiple part numbers: HT7818, HT7805.
Please refer to the document for exact specifications by model.

HT7818 Product details

Description

The HT78XX is integrated linear positive regulator with three terminals.

Features

Output Current of 1.5A.
Output Voltage Tolerance of 5%.
Internal thermal overload protection.
Internal Short-Circuit Limited.
No External Component.
Output Voltage 5.0V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 24V.
Offer in plastic TO-252, TO-220 & TO-263.
Direct Replacement for HT78XX.
