HT7827 - 500mA TinyPower LDO

Product Overview

Holtek Semiconductor

📥 Download Datasheet

HT7827 500mA TinyPower LDO by Holtek Semiconductor - Datasheet Preview — Datasheet preview – HT7827

Datasheet Details

Part number	HT7827
Manufacturer	Holtek Semiconductor
File Size	309.48 KB
Description	500mA TinyPower LDO
Datasheet	HT7827 Datasheet
Note	This datasheet PDF includes multiple part numbers: HT7827, HT78xx. Please refer to the document for exact specifications by model.

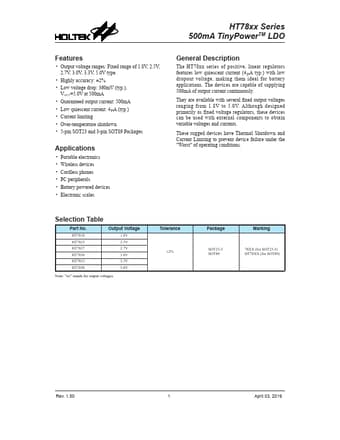

Additional preview pages of the HT7827 datasheet.

Product details

Description

The HT78xx series of positive, linear regulators

Features

Output voltage ranges: Fixed range of 1.8V, 2.5V, 2.7V, 3.0V, 3.3V, 5.0V type.
Highly accuracy: ±2%.
Low voltage drop: 360mV (typ. ), VOUT=5.0V at 500mA.
Guaranteed output current: 500mA.
Low quiescent current: 4mA (typ. ).
Current limiting.
Over-temperature shutdown.
5-pin SOT23 and 3-pin SOT89 Packages.
