HY3210NA2B, HY3210NA2P Datasheet - HUAYI

HY3210NA2B N-Channel Enhancement Mode MOSFET

TO-220FB-3L TO-263-2L Ordering and Marking Information P HY3210 XYMXXXXXX B HY3210 XYMXXXXXX N-Channel MOSFET Package Code P :TO-220FB-3L Date Code XYMXXXXXX B :TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish.

HY3210NA2P-HUAYI.pdf

This datasheet PDF includes multiple part numbers: HY3210NA2B, HY3210NA2P. Please refer to the document for exact specifications by model.

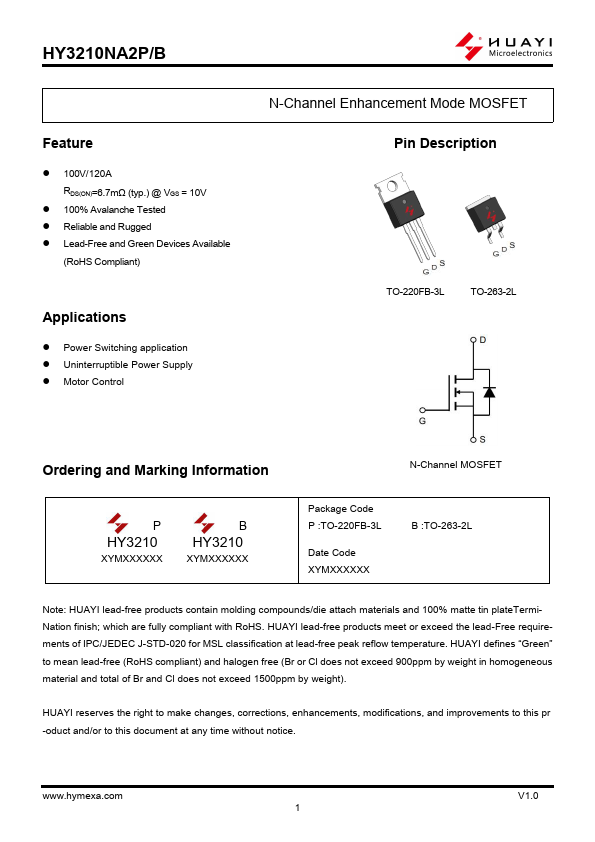

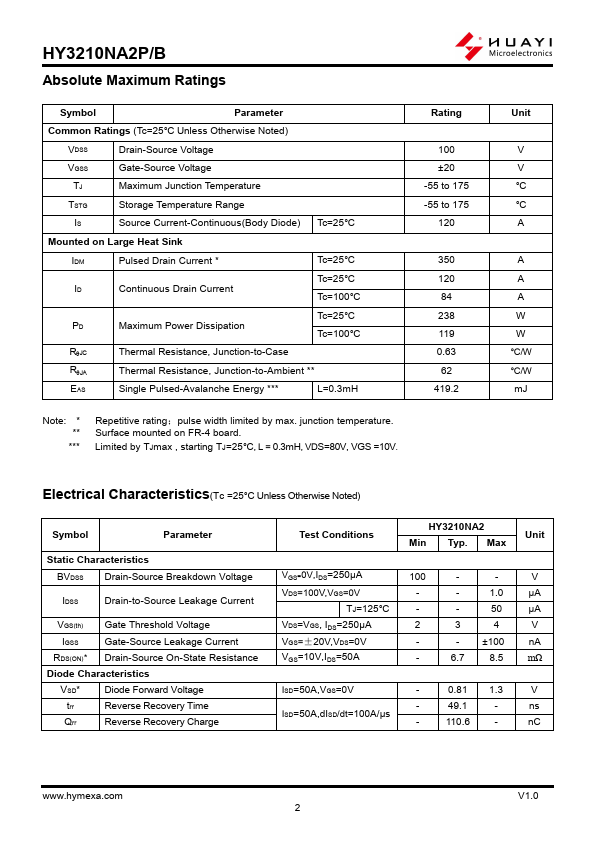

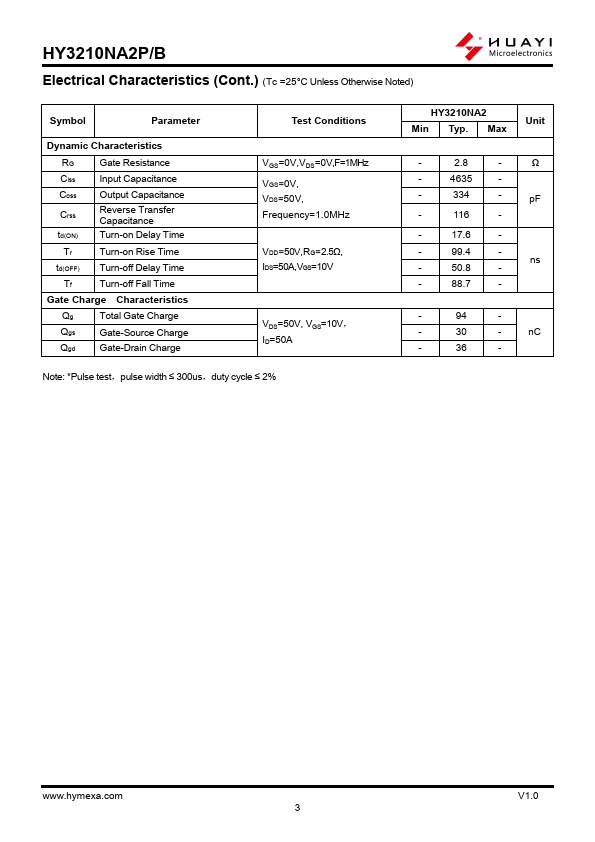

HY3210NA2B Datasheet Preview Page 2 HY3210NA2B Datasheet Preview Page 3

Datasheet Details

Part number:

HY3210NA2B, HY3210NA2P

Manufacturer:

HUAYI

File Size:

1.41 MB

Description:

N-channel enhancement mode mosfet.

Note:

This datasheet PDF includes multiple part numbers: HY3210NA2B, HY3210NA2P.
Please refer to the document for exact specifications by model.
