HY4504W - N-Channel Enhancement Mode MOSFET

HUAYI

📥 Download Datasheet

HY4504W Datasheet Preview — Preview of HY4504W PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HY4504W
Manufacturer	HUAYI
File Size	509.22 KB
Description	N-Channel Enhancement Mode MOSFET
Datasheet	HY4504W-HUAYI.pdf

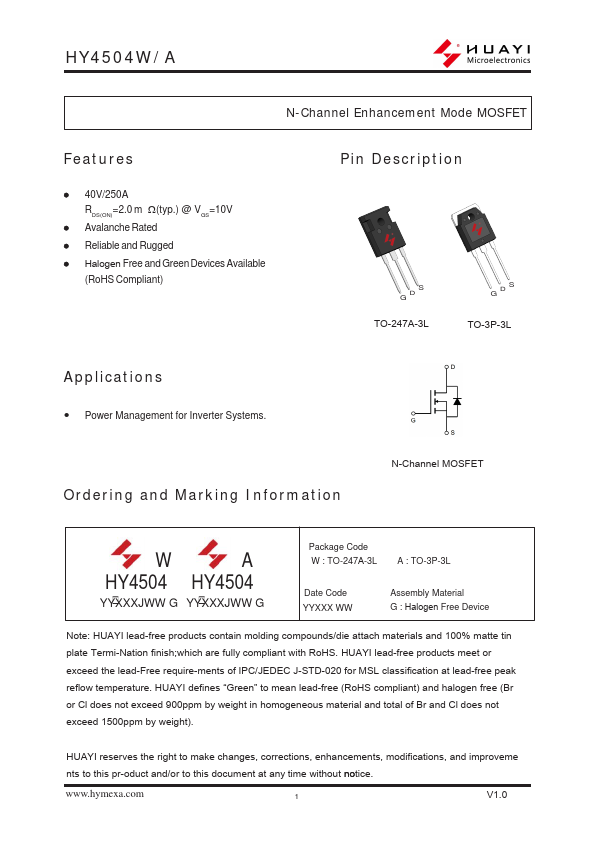

HY4504W Product details

Description

S D G 72$/ S D G 723/ Applications Power Management for Inverter Systems.

Features

40V/250A R =2.0 m DS(ON) Ω(typ. ) @ V =10V GS.
Avalanche Rated.
Reliable and Rugged.
Halogen Free and Green Devices Available (RoHS Compliant) Pin.
