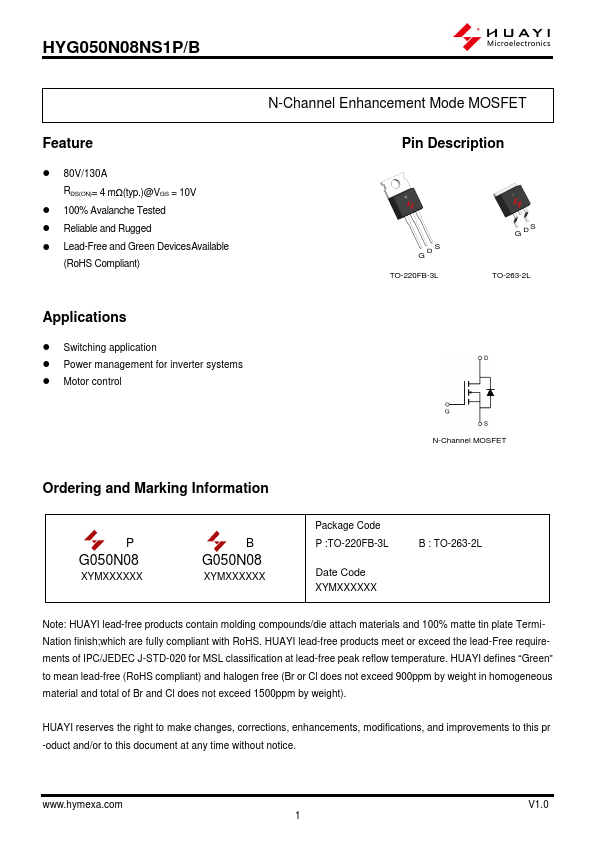

HYG050N08NS1P
Feature
- 80V/130A RDS(ON)= 4 mΩ(typ.)@VGS = 10V
- 100% Avalanche Tested
- Reliable and Rugged
- Lead-Free and Green Devices Available
(Ro HS pliant)
N-Channel Enhancement Mode MOSFET Pin Description
DS G TO-220FB-3L
G DS TO-263-2L
Applications
- Switching application
- Power management for inverter systems
- Motor control
N-Channel MOSFET
Ordering and Marking Information
G050N08
XYMXXXXXX
G050N08
XYMXXXXXX
Package Code P :TO-220FB-3L
Date Code XYMXXXXXX
B : TO-263-2L
Note: HUAYI lead-free products contain molding pounds/die attach materials and 100% matte tin plate Termi Nation finish;which are fully pliant with Ro HS. HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature. HUAYI defines “Green” to mean lead-free (Ro HS pliant) and halogen free (Br or Cl does not exceed 900ppm by weight in homogeneous material and total of Br and Cl does not exceed 1500ppm by weight).
HUAYI...
