HVCHF81-B501-15 Datasheet, Capacitors, HVCAP

📥 Download PDF (1.56 MB)

PDF File Details

Part number:

HVCHF81-B501-15

Manufacturer:

HVCAP

File Size:

1.56 MB

Download:

📄 Datasheet

Description:

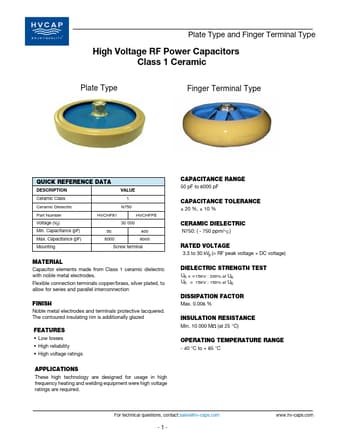

High voltage rf power capacitors. Ceramic Class Ceramic Dielectric Part Number Voltage (Vp) Min. Capacitance (pF) Max. Capacitance (pF) Mounting 50 6000 HVCHF81 30 000

✔ HVCHF81-B501-15 Features

Low losses
High reliability
High voltage ratings OPERATING TEMPERATURE RANGE - 40 °C to + 85 °C APPLICATIONS These high technology are designed for usage in high

✔ HVCHF81-B501-15 Application

These high technology are designed for usage in high frequency heating and welding equipment were high volta
