CSC3100

TFT LCD Color Monitor

CSC3100 Features

* Low power dissipation (160mW TYP.) Applicable to both NTSC and PAL (Simple PAL only) Accepts composite video signal and Y/C signal input Built-in TRAP and HPF Built-in image control circuit Built-in AGC circuit (AGC OFF function) Built-in gamma correction circuits Built-in polarity invertor circuits

CSC3100 General Description

CSC3100 The CSC3100 is a compact multi-functional IC with a luminance, chroma, interface and sync separator circuit for the NTSC/PAL TFT LCD color monitors all integrated onto a single chip. This IC contains a luminance AGC circuit, gamma correction circuits to convert composite video signal or Y/.

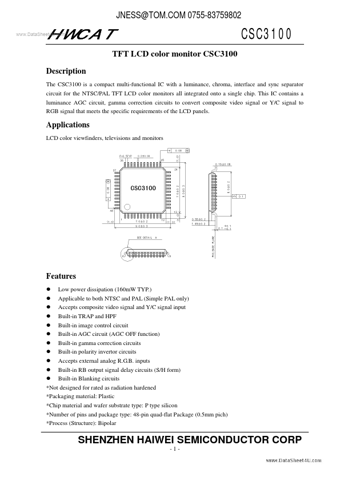

CSC3100 Datasheet (371.21 KB)

Preview of CSC3100 PDF

Datasheet Details

Part number:

CSC3100

Manufacturer:

HWCAT

File Size:

371.21 KB

Description:

Tft lcd color monitor.
