Part number:
GBU8005
Manufacturer:
HY ELECTRONIC
File Size:
69.84 KB

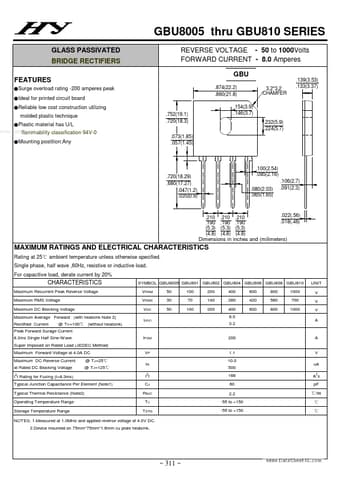

Description:
(gbu8xx) glass passivated bridge rectifiers.
* Surge overload rating -200 amperes peak
* Ideal for printed circuit board
* Reliable low cost construction utilizing REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 8.0 Amperes GBU .874(22.2) .860(21.8) .154(3.9) .146(3.7) .232(5.9) .224(5.7) 3.2
* 3.2 CHAMFER .139(3.53) .133(3.37)
GBU8005
HY ELECTRONIC
69.84 KB
(gbu8xx) glass passivated bridge rectifiers.
