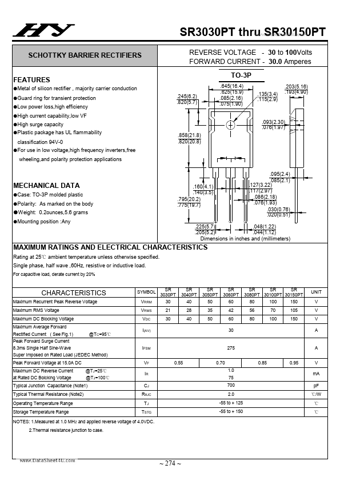

SR3080PT, SR3040PT - (SR3030PT - SR30150PT) SCHOTTKY BARRIER RECTIFIERS

HY ELECTRONIC

Datasheet Details

Part number: SR3080PT, SR3040PT
Manufacturer: HY ELECTRONIC
File Size: 110.17 KB
Datasheet: SR3040PT_HYELECTRONIC.pdf
Description: (SR3030PT - SR30150PT) SCHOTTKY BARRIER RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: SR3080PT, SR3040PT.
Please refer to the document for exact specifications by model.

Metal of silicon rectifier , majority carrier conduction.
Guard ring for transient protection.
Low power loss,high efficiency.
High current capability,low VF.
High surge capacity.
Plastic package has UL flammability .093(2.30) .076(1.97) .858(21.8) .820(20.8) classification 94V-0.
For use in low voltage,high frequency inverters,free wheeling,and polarity protection.
