SR3050PT, SR3040PT, (SR3030PT - SR30150PT) SCHOTTKY BARRIER RECTIFIERS

www.DataSheet4U.com SR3030PT thru SR30150PT SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE - 30 to 100Volts FORWARD CURRENT - 30.0 Amperes TO-3P .245(6.

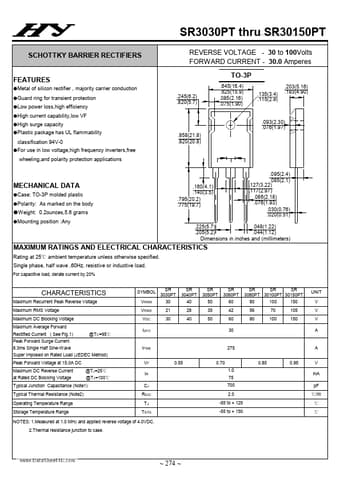

datasheet Preview Page 1 from Datasheet4u.com

SR3040PT_HYELECTRONIC.pdf

SR3050PT Datasheet Preview — This datasheet PDF includes multiple part numbers: SR3050PT, SR3040PT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SR3050PT, SR3040PT

Manufacturer:

HY ELECTRONIC

File Size:

110.17 KB

Description:

(SR3030PT - SR30150PT) SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: SR3050PT, SR3040PT.
Please refer to the document for exact specifications by model.

Features

* Metal of silicon rectifier , majority carrier conduction
* Guard ring for transient protection
* Low power loss,high efficiency
* High current capability,low VF
* High surge capacity
* Plastic package has UL flammability .093(2.30) .076(1.97) .858(21.8) .820(20.8) classificatio

Applications

* .095(2.4) .085(2.1) .127(3.22) .117(2.97) .086(2.18) .076(1.93) .030(0.76) .020(0.51) MECHANICAL DATA
* Case: TO-3P molded plastic
* Polarity: As marked on the body .160(4.1) .140(3.5) .795(20.2) .775(19.7)
* Weight: 0.2ounces,5.6 grams
* Mounting position :Any .225(5.7) .048(1.22) .
