SS53A, SS52A, SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS .

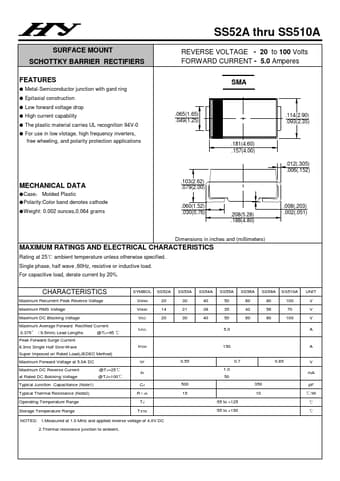

datasheet Preview Page 1 from Datasheet4u.com

SS52A-HYELECTRONIC.pdf

SS53A Datasheet Preview — This datasheet PDF includes multiple part numbers: SS53A, SS52A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SS53A, SS52A

Manufacturer:

HY ELECTRONIC

File Size:

35.12 KB

Description:

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: SS53A, SS52A.
Please refer to the document for exact specifications by model.

Features

* Metal-Semiconductor junction with gard ring
* Epitaxial construction
* Low forward voltage drop
* High current capability
* The plastic material carries UL recognition 94V-0
* For use in low vlotage, high frequency inverters, free wheeling, and polarity protection applicati

Applications

* MECHANICAL DATA
* Case： Molded Plastic
* Polarity:Color band denotes cathode
* Weight: 0.002 ounces,0.064 grams SS52A thru SS510A REVERSE VOLTAGE - 20 to 100 Volts FORWARD CURRENT - 5.0 Amperes SMA .065(1.65) .049(1.25) .181(4.60) .157(4.00) .103(2.62) .079(2.00) .060(1.52) .030(0.76)
