SS539 - Bipolar Hall-Effect Position Sensor

SS539 Description

SS539 Bipolar Hall-Effect Position Sensor Packages .
The SS539 is an integrated Hall effect latched sensor designed for electronic commutation of brush-less DC motor applications.

SS539 Features

* 4.5V to 24V Operation -40℃ to 150℃ Superior temperature operation Bipolar technology Open-collector 25 mA output Reverse battery protection Solid-state reliability Resistant to physical stress Small Size-SOT23

SS539 Applications

* The device integrates a voltage regulator, reverse battery protection diode, Hall sensor with dynamic offset cancellation system, temperature compensation circuitry, small signal amplifier, Schmitt trigger and an open-collector output to sink up to 25 mA SIP Package Pin 1
* VDD Pin 2

📥 Download Datasheet

Preview of SS539 PDF

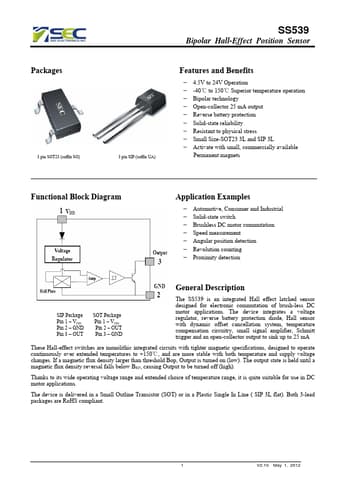

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS539
Manufacturer
SEC
File Size
348.94 KB
Datasheet
SS539_SEC.pdf
Description
Bipolar Hall-Effect Position Sensor
