SS542

Hall Latch - High Sensitivity

SEC

SS542 Features

* CMOS Hall IC Technology

* Bipolar Output CMOS Multi-purpose latch

* Solid-State Reliability much better than reed switch

* Operation down to 2.5V

* Supply current down to 45μA, very low power consumption

* CMOS inverter output (no pull-up resistance)

SS542 General Description

The SS542 Hall effect sensor IC is fabricated from mixed signal CMOS technology. It incorporates advanced chopper-stabilization techniques to provide accurate and stable magnetic switch points. The circuit design provides an internally controlled clocking mechanism to cycle power to the Hall eleme.

SS542 Datasheet (280.75 KB)

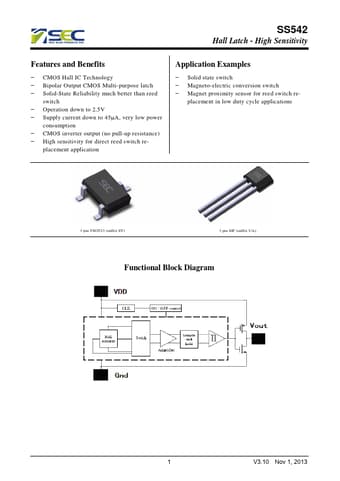

SS542 Datasheet Preview — Preview of SS542 PDF

Datasheet Details

Part number:

SS542

Manufacturer:

SEC

File Size:

280.75 KB

Description:

Hall latch - high sensitivity.
