SS541AT, SS500, Hall-effect Digital Position Sensor

Bipolar, Latching, and Unipolar Hall-effect Digital Position Sensor ICs: SS400 Series, SS500 Series 32320997 Issue B Datasheet .
The SS400 Series and SS500 Series are small and versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet.

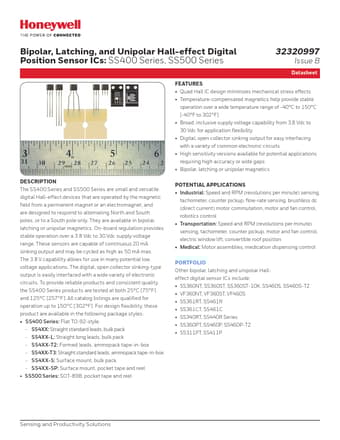

datasheet Preview Page 1 from Datasheet4u.com

SS500-HONEYWELL.pdf

SS541AT Datasheet Preview — This datasheet PDF includes multiple part numbers: SS541AT, SS500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SS541AT, SS500

Manufacturer:

HONEYWELL

File Size:

1.27 MB

Description:

Hall-effect Digital Position Sensor

Note:

This datasheet PDF includes multiple part numbers: SS541AT, SS500.
Please refer to the document for exact specifications by model.

Features

* Quad Hall IC design minimizes mechanical stress effects
* Temperature-compensated magnetics help provide stable operation over a wide temperature range of -40°C to 150°C [-40°F to 302°F]

Applications

* requiring high accuracy or wide gaps
