SS54

(SS52 - SS510) SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SS54 Features

* Metal-Semiconductor junction with gard ring

* Epitaxial construction

* Low forward voltage drop

* High current capability

* The plastic material carries UL recognition 94V-0

* For use in low vlotage, high frequency inverters, .280(7.11) .260(6.60) .012(.305) .006(.152) .103

SS54 Datasheet (74.28 KB)

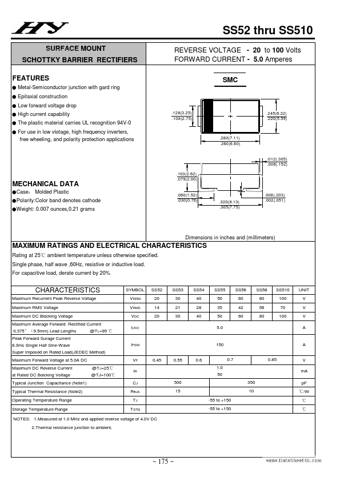

Preview of SS54 PDF

Datasheet Details

Part number:

SS54

Manufacturer:

HY ELECTRONIC

File Size:

74.28 KB

Description:

(ss52 - ss510) surface mount schottky barrier rectifiers.
