SS54B, SS52B SCHOTTKY BARRIER RECTIFIER

JINAN JINGHENG

Description

R SEMICONDUCTOR SS52B THRU SS520B SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts Forward Current - 5.0Amperes .

📥 Download Datasheet

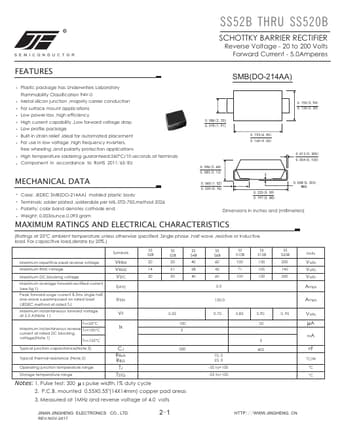

SS54B Datasheet Preview — This datasheet PDF includes multiple part numbers: SS54B, SS52B. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SS54B, SS52B
Manufacturer: JINAN JINGHENG
File Size: 421.91 KB
Datasheet: SS52B-JINANJINGHENG.pdf
Description: SCHOTTKY BARRIER RECTIFIER
Note: This datasheet PDF includes multiple part numbers: SS54B, SS52B.
Please refer to the document for exact specifications by model.

Applications

* Low power loss ,high efficiency High current capability ,Low forward voltage drop Low profile package Built-in strain relief ,ideal for automated placement For use in low voltage ,high frequency inverters, 0.086(2.20) 0.075(1.91) 0.193(4.90) 0.160(4.06) 0.155(3.94) 0.130(3.30) free wheeling ,and
