SS559 - Hall Latch - High Sensitivity

SS559 Description

SS559 Hall Latch - High Sensitivity Packages .
The SS559 is a unipolar Hall-effect sensor IC fabricated from mixed signal CMOS technology.

SS559 Features

* Wide operating voltage range from 2.5V to 24V High magnetic sensitivity
* Multi-purpose CMOS technology Low current consumption Chopper-stabilized amplifier stage Open drain output Superior temperature

SS559 Applications

* for this HED - Hall Electronic Device - in addition to those listed above. The design, specifications and performance have been optimized for commutation applications in 5V and 12V brushless DC motors. Thanks to its wide operating voltage range and extended choice of temperature range, it is quite s

📥 Download Datasheet

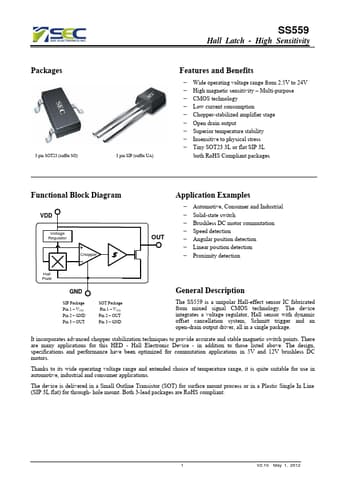

Preview of SS559 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS559
Manufacturer
SEC
File Size
431.79 KB
Datasheet
SS559_SEC.pdf
Description
Hall Latch - High Sensitivity
