DB105S, DB101S Surface Mount Glass Passivated Bridge Rectifiers

DB105S Description

www.hygroup.com.tw DB101S THRU DB107S Surface Mount Glass Passivated Bridge Rectifiers .

DB105S Features

* Glass passivated chip
* Ideal for automatic placement
* High surge forward current capability
* Reliable low cost construction utilizing molded plastic technique
* Lead tin plated copper Reverse Voltage - 50 to 1000 Volts 50-1000V Forward Current - 1.0 Amperes 1.0A DBS

DB105S Applications

* General purpose use in AC/DC bridge full wave rectification, for SMPS, lighting ballaster, adapter, etc. /，：， 、。 Package Ou

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DB105S, DB101S. Please refer to the document for exact specifications by model.

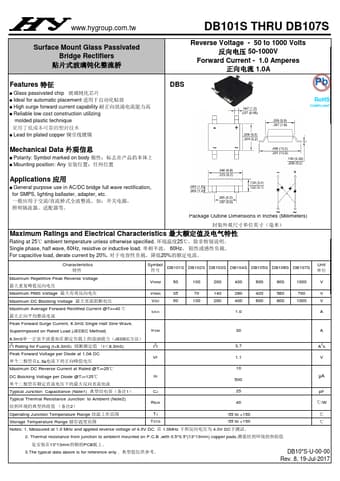

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DB105S, DB101S
Manufacturer
HY
File Size
159.18 KB
Datasheet
DB101S-HY.pdf
Description
Surface Mount Glass Passivated Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: DB105S, DB101S.
Please refer to the document for exact specifications by model.
