DF15005S

SURFACE MOUNT GLASS PASSIVATED BRIDEG RECTIFIERS

DF15005S Features

* Rating to 1000V PRV

* Ideal for printed circuit board

* Low forward voltage drop,high current capability

* Reliable low cost construction utilizing molded plastic technique results in inexpensive product

* Lead tin Pb/Sn copper

* The plastic material has UL flammability classific

DF15005S Datasheet (38.59 KB)

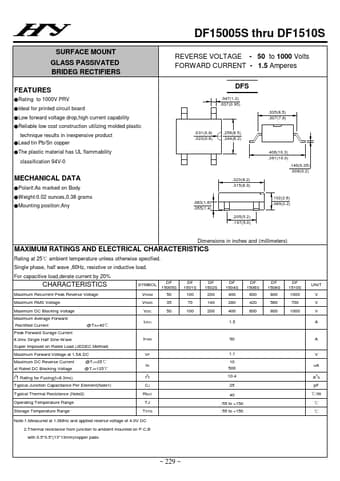

Preview of DF15005S PDF

Datasheet Details

Part number:

DF15005S

Manufacturer:

HY

File Size:

38.59 KB

Description:

Surface mount glass passivated brideg rectifiers.
