DF2005S BRIDGE RECTIFIERS

DF2005S Description

DF2005S thru DF210S SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 2.0 Amperes .

DF2005S Features

* Rating to 1000V PRV
* Ideal for printed circuit board
* Low forward voltage drop,high current capability
* Reliable low cost construction utilizing molded plastic technique results in inexpensive product
* The plastic material has UL flammability classification 94V-0 MECHANICAL DATA

📥 Download Datasheet

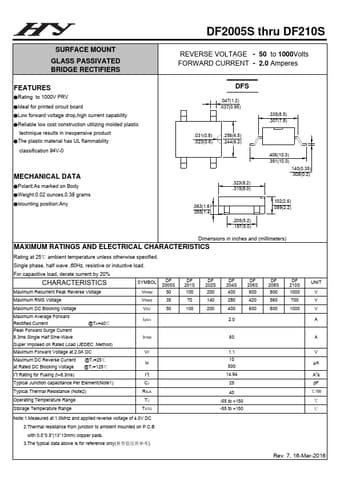

Preview of DF2005S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DF2005S
Manufacturer
HY
File Size
141.01 KB
Datasheet
DF2005S-HY.pdf
Description
BRIDGE RECTIFIERS
