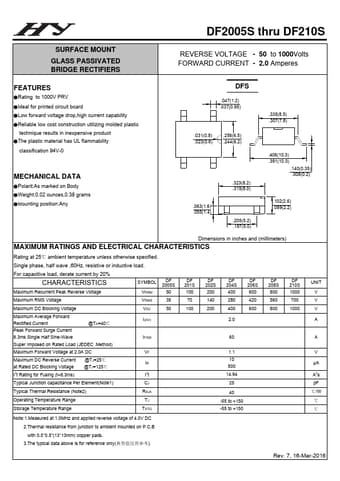

Part number:
DF210S
Manufacturer:
HY
File Size:
141.01 KB
Description:
Bridge rectifiers.
* Rating to 1000V PRV
* Ideal for printed circuit board
* Low forward voltage drop,high current capability
* Reliable low cost construction utilizing molded plastic technique results in inexpensive product
* The plastic material has UL flammability classification 94V-0 MECHANICAL DATA
DF210S
HY
141.01 KB
Bridge rectifiers.
