* -Rating to 1000V PRV -Ideal for printed circuit board -Low forward voltage drop,high current capability -Reliable low cost construction utilizing molded plastic technique results in inexpensive product -The plastic material has UL flammability classification 94V-0 Mechanical Data -Polarit: As marked
DF210-G
Comchip
43.58 KB
Glass passivated bridge rectifiers.

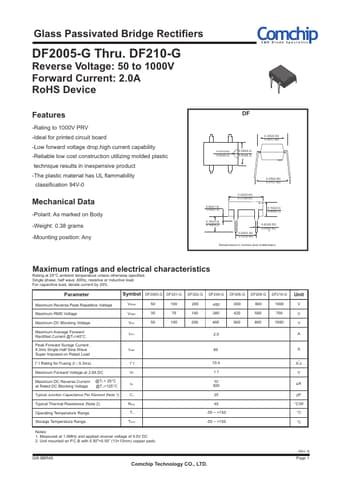

Glass Passivated Bridge Rectifiers
DF2005-G Thru. DF210-G
Reverse Voltage: 50 to 1000V Forward Current: 2.0A RoHS Device
Comchip SMD Diode Specialist.
