DF210S, DF2005S - GLASS PASSIVATED BRIDGE RECTIFIERS

KD

📥 Download Datasheet

DF210S Datasheet Preview — This datasheet PDF includes multiple part numbers: DF210S, DF2005S. Please refer to the document for exact specifications by model.

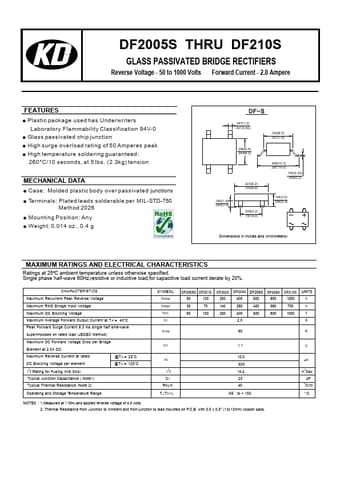

datasheet Preview Page 2

Datasheet Details

Part number	DF210S, DF2005S
Manufacturer	KD
File Size	0.97 MB
Description	GLASS PASSIVATED BRIDGE RECTIFIERS
Datasheet	DF2005S-KD.pdf
Note	This datasheet PDF includes multiple part numbers: DF210S, DF2005S. Please refer to the document for exact specifications by model.

DF210S Product details

Features

Plastic package used has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated chip junction.
High surge overload rating of 50 Amperes peak.
High temperature soldering guaranteed: 260°C/10 seconds, at 5 lbs. (2.3kg) tension.
