HTR20K200CT TRENCH SCHOTTKY BARRIER RECTIFIER

Description

www.hygroup.com.tw HTR20K200CT, HTRF20K200CT HTRI20K200CT, HTRB20K200CT TRENCH SCHOTTKY BARRIER RECTIFIERS REVERSE VOLTAGE 200 FORWARD CURRENT 20 .

📥 Download Datasheet

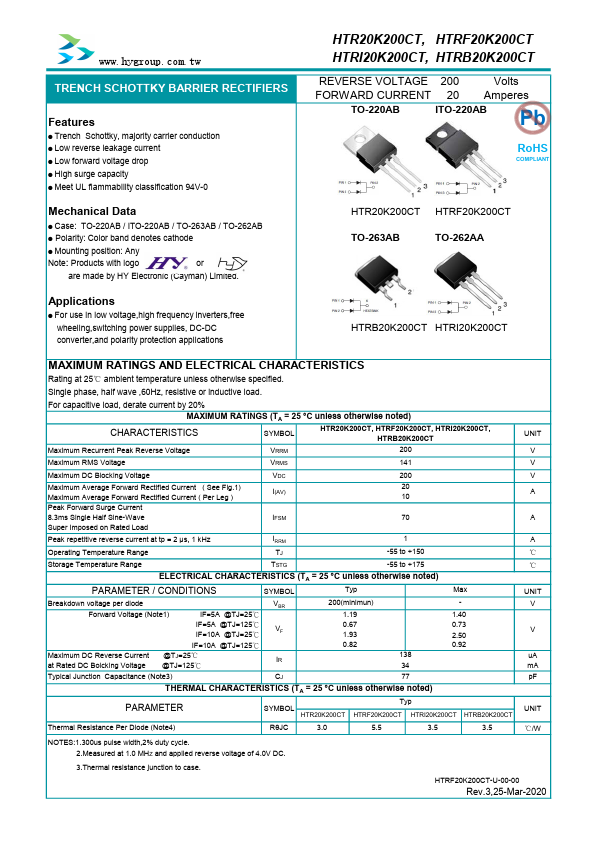

HTR20K200CT Datasheet Preview — Preview of HTR20K200CT PDF

Datasheet Specifications

Part number: HTR20K200CT
Manufacturer: HY
File Size: 1.27 MB
Datasheet: HTR20K200CT-HY.pdf
Description: TRENCH SCHOTTKY BARRIER RECTIFIER

Features

* 67 K TO-220AB ITO-220AB Pb
* Trench Schottky, majority carrier conduction
* Low reverse leakage current RoHS
* Low forward voltage drop COMPLIANT
* High surge capacity
* Meet UL flammability classification 94V-0 Mechanical Data
* Case: TO-220AB / ITO-220AB / TO-2

Applications

* For use in low voltage,high frequency inverters,free wheeling,switching power supplies, DC-DC converter,and polarity protection applications HTRB20K200CT HTRI20K200CT MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient temperature unless otherwise specified. Single phase,
