KBL404, KBL4005 Datasheet - HY

KBL404 - GLASS PASSIVATED BRIDGE RECTIFIERS

KBL404 Features

* Surge overload rating -125 Amperes peak

* ldeal for printed circuit board

* Plastic material has UL flammability classification 94V-0

* Mounting position :Any KBL4005 thru KBL410 REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 4.0Amperes .157(4.0)

* 45° KBL .768(19.5) .728(18

KBL4005-HY.pdf

This datasheet PDF includes multiple part numbers: KBL404, KBL4005. Please refer to the document for exact specifications by model.

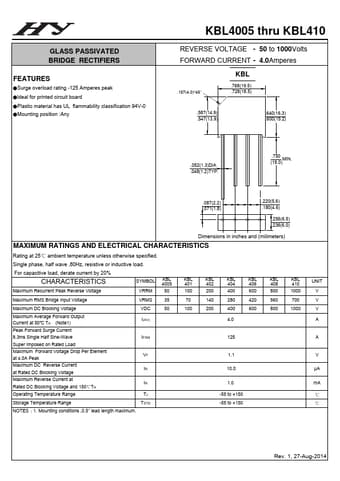

KBL404 Datasheet Preview Page 2 KBL404 Datasheet Preview Page 3

Datasheet Details

Part number:

KBL404, KBL4005

Manufacturer:

HY

File Size:

228.44 KB

Description:

Glass passivated bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: KBL404, KBL4005.
Please refer to the document for exact specifications by model.
