SF36, SF31 SUPER FAST RECTIFIERS

SF36 Description

SF31 thru SF38 SUPER FAST RECTIFIERS .

SF36 Features

* Super fast switching time for high efficiency
* Low forward voltage drop and high current capabiltiy
* Low reverse leakage current
* Plastic material has UL flammability classification 94V-0 REVERSE VOLTAGE - 50 to 600 Volts FORWARD CURRENT - 3.0 Amperes DO- 27 .984(25.0) MIN. .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SF36, SF31. Please refer to the document for exact specifications by model.

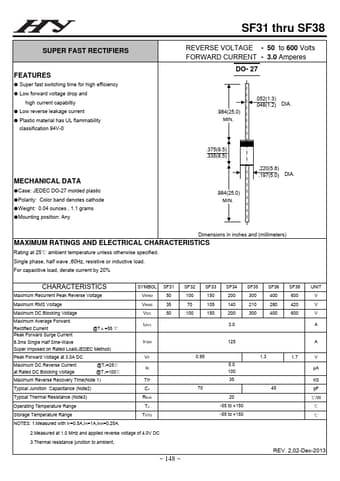

datasheet Preview Page 2

Datasheet Details

Part number
SF36, SF31
Manufacturer
HY
File Size
72.96 KB
Datasheet
SF31-HY.pdf
Description
SUPER FAST RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SF36, SF31.
Please refer to the document for exact specifications by model.
