SS220, SS215 SCHOTTKY BARRIER RECTIFIERS

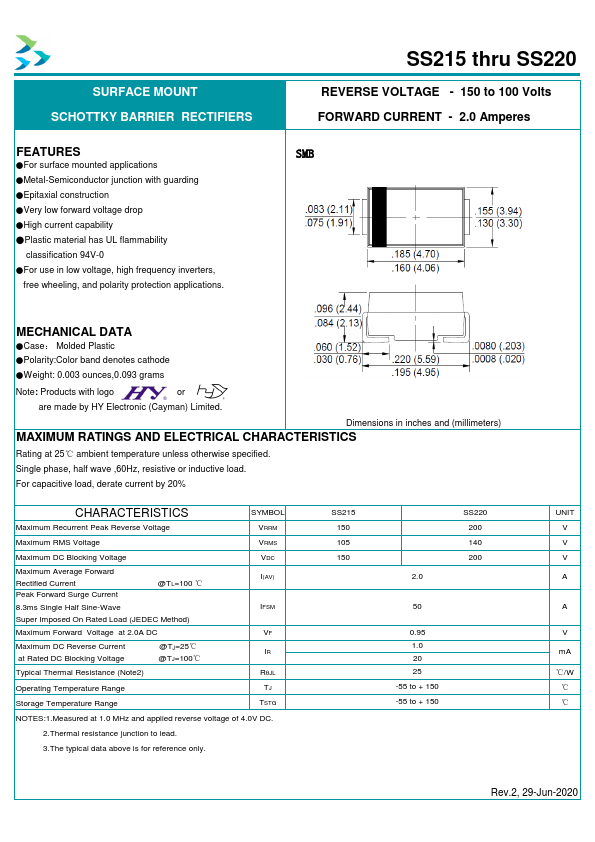

📥 Download Datasheet Datasheet Preview Page 1

Description

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS220, SS215. Please refer to the document for exact specifications by model.

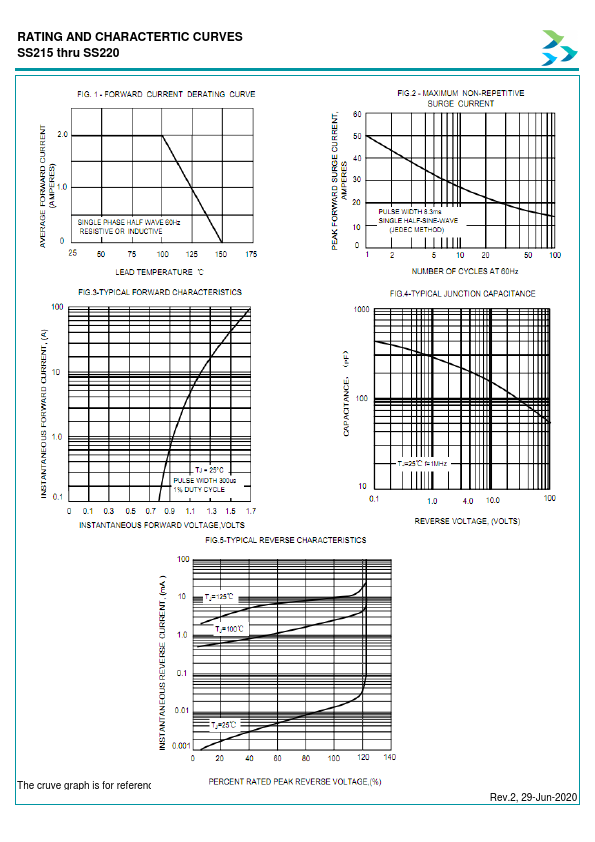

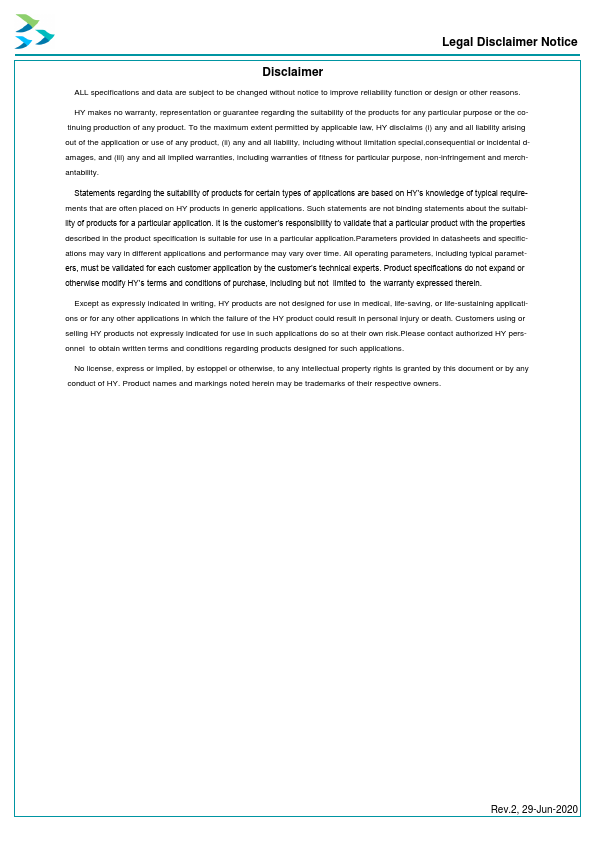

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SS220, SS215
Manufacturer
HY
File Size
258.32 KB
Datasheet
SS215-HY.pdf
Description
SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SS220, SS215.
Please refer to the document for exact specifications by model.

Applications

* Metal-Semiconductor junction with guarding
* Epitaxial construction
* Very low forward voltage drop
* High current capability
* Plastic material has UL flammability classification 94V-0
* For use in low voltage, high frequency inverters, free wheeling, and polarity protection app
