TG110-EMX6NXLF, TG110-AMX2NXLF, SMD Quad Port 10/100BASE-TX Isolation Modules

Quatra™ Transformer SMD Quad Port 10/100BASE-TX Isolation Modules RoHS Compliant Conflict FREE ü Product .

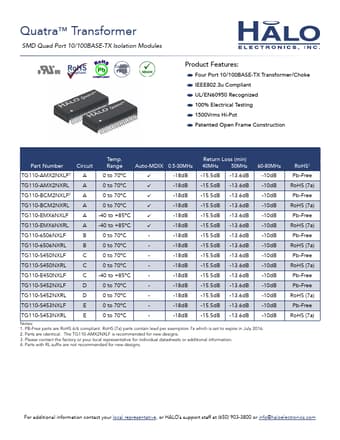

datasheet Preview Page 1 from Datasheet4u.com

TG110-AMX2NXLF-Halo.pdf

TG110-EMX6NXLF Datasheet Preview — This datasheet PDF includes multiple part numbers: TG110-EMX6NXLF, TG110-AMX2NXLF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TG110-EMX6NXLF, TG110-AMX2NXLF

Manufacturer:

Halo

File Size:

440.21 KB

Description:

SMD Quad Port 10/100BASE-TX Isolation Modules

Note:

This datasheet PDF includes multiple part numbers: TG110-EMX6NXLF, TG110-AMX2NXLF.
Please refer to the document for exact specifications by model.

Features

* Four Port 10/100BASE-TX Transformer/Choke IEEE802.3u Compliant UL/EN60950 Recognized 100% Electrical Testing 1500Vrms Hi-Pot Patented Open Frame Construction Part Number Circuit TG110-AMX2NXLF2 A Temp. Range 0 to 70°C Auto-MDIX 0.5-30MHz ü -18dB Return Loss (min) 40MHz 50MHz -15.5dB -13.6dB
