TG110-EMX6NXRL

SMD Quad Port 10/100BASE-TX Isolation Modules

TG110-EMX6NXRL Features

* Four Port 10/100BASE-TX Transformer/Choke IEEE802.3u Compliant UL/EN60950 Recognized 100% Electrical Testing 1500Vrms Hi-Pot Patented Open Frame Construction Part Number Circuit TG110-AMX2NXLF2 A Temp. Range 0 to 70°C Auto-MDIX 0.5-30MHz ü -18dB Return Loss (min) 40MHz 50MHz -15.5dB -13.6dB

TG110-EMX6NXRL Datasheet (440.21 KB)

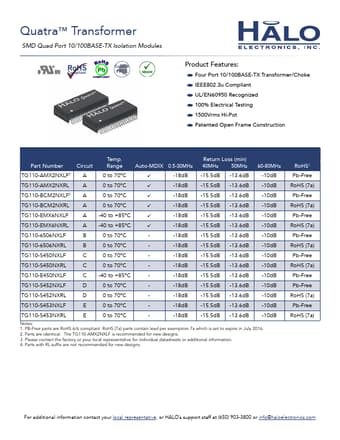

Preview of TG110-EMX6NXRL PDF

Datasheet Details

Part number:

TG110-EMX6NXRL

Manufacturer:

Halo

File Size:

440.21 KB

Description:

Smd quad port 10/100base-tx isolation modules.
