HMF2M32M8G

FLASH-ROM MODULE

Hanbit Electronics

HMF2M32M8G Features

* w Access time : 75, 90 and 120ns w High-density 8MByte design w High-reliability, low-power design w Single + 5V ± 0.5V power supply w Easy memory expansion w All inputs and outputs are TTL-compatible w FR4-PCB design w Low profile 72-pin SIMM w Minimum 1,000,000 write/erase cycle w Sectors erase ar

HMF2M32M8G General Description

The HMF2M32M8G is a high-speed flash read only memory (FROM) module containing 2,097,152 words organized in a x32bit configuration. The module consists of eight 1M x 8 FROM mounted on a 72 -pin, double-sided, FR4-printed circuit board. 2 The HMF2M32M8 is entirely pin and command set compatible with .

HMF2M32M8G Datasheet (458.25 KB)

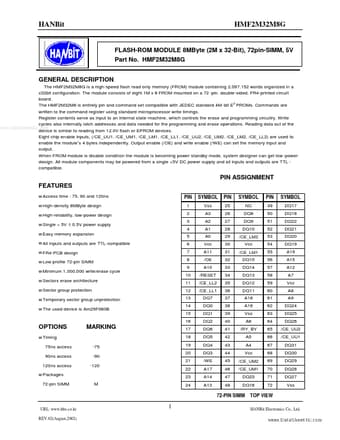

HMF2M32M8G Datasheet Preview — Preview of HMF2M32M8G PDF

Datasheet Details

Part number:

HMF2M32M8G

Manufacturer:

Hanbit Electronics

File Size:

458.25 KB

Description:

Flash-rom module.
