HMF2M32M8A, FLASH-ROM MODULE

HANBit HMF2M32M8A FLASH-ROM MODULE 8MByte (2M x 32-Bit), 72pin-SIMM, 5V Part No.HMF2M32M8A GENERAL .
The HMF2M32M8A is a high-speed flash read only memory (FROM) module containing 2,097,152 words organized in a x32bit configuration.

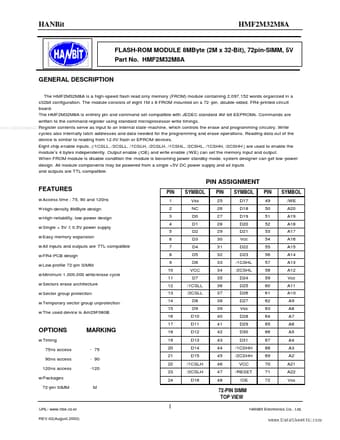

datasheet Preview Page 1 from Datasheet4u.com

HMF2M32M8A_HanbitElectronics.pdf

HMF2M32M8A Datasheet Preview — Preview of HMF2M32M8A PDF

Datasheet Details

Part number:

HMF2M32M8A

Manufacturer:

Hanbit Electronics

File Size:

337.07 KB

Description:

FLASH-ROM MODULE

Features

* w Access time : 75, 90 and 120ns w High-density 8MByte design w High-reliability, low-power design w Single + 5V ± 0.5V power supply w Easy memory expansion w All inputs and outputs are TTL-compatible w FR4-PCB design w Low profile 72-pin SIMM w Minimum 1,000,000 write/erase cycle w Sectors erase ar
