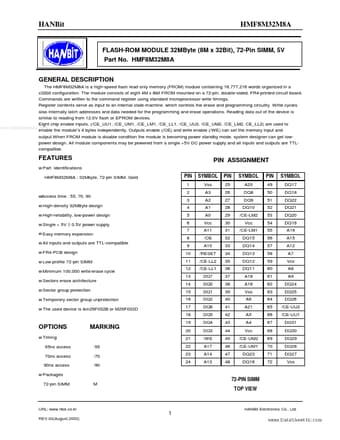

HMF8M32M8A FLASH-ROM MODULE

The HMF8M32M8A is a high-speed flash read only memory (FROM) module containing 16,777,216 words organized in a x32bit configuration. The module consists of eight 4M x 8bit FROM mounted on a 72-pin, double-sided, FR4-printed circuit board. Commands are written to the command register using standard m.

HMF8M32M8A Features

* w Part Identifications HMF8M32M8A : 32Mbyte, 72-pin SIMM, Gold PIN 1 wAccess time : 55, 70, 90 w High-density 32MByte design w High-reliability, low-power design w Single + 5V ± 0.5V power supply w Easy memory expansion w All inputs and outputs are TTL-compatible w FR4-PCB design w Low profile 72-pi
